660K Nitrogen Trailer 520044

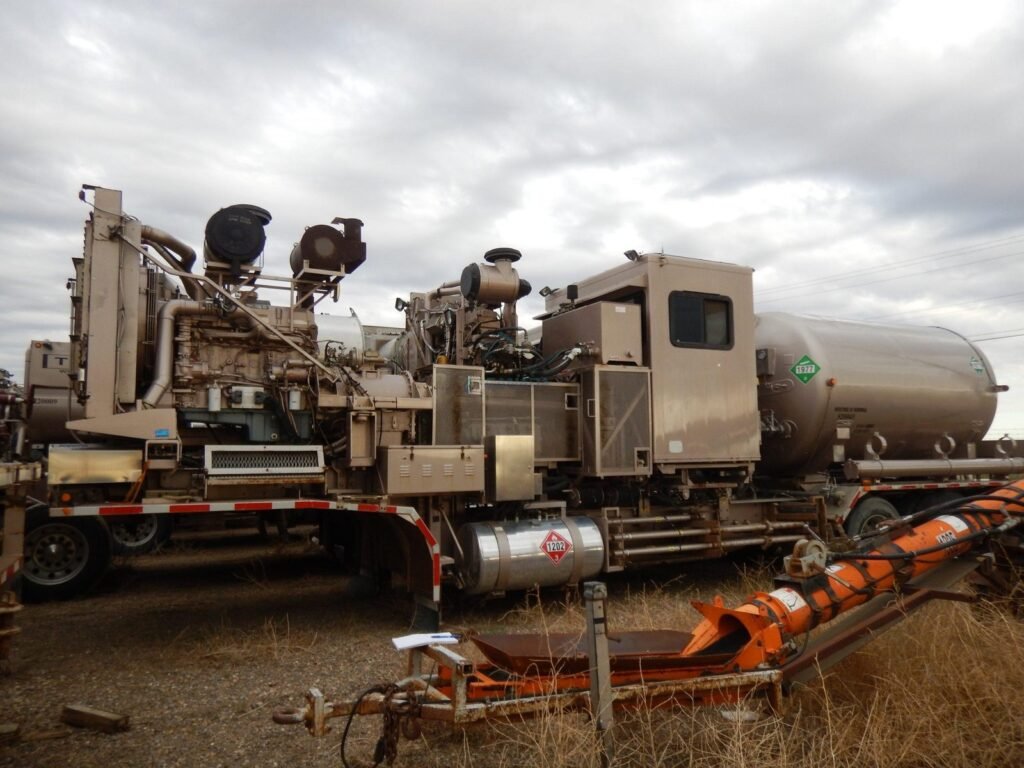

- 660K Trailer Mounted Direct-Fired Nitrogen Pumping Unit
- Make: Crown Energy Technologies
- 3,000 USG capacity
- Vita International Vaporizer (Model VDF-720K-10) rated to 305m3/min (11,000 scfm) at 69 kPa (10,000 psi)
- Doepker tri-axle, single drop deck trailer , 43 feet 3-1/2” in length (43’ 3.5”)
- Detroit Diesel Series 60 is the main (deck) Diesel Engine
- Detroit Diesel Series 40 is the auxiliary engine mounted on the unit for the hydraulic system
- Allison S6610 is the Powershift transmission
- A Cotta (Model TR1883) 2-speed gear box is installed between the transmission and the pump
- L&S Cryogenics Model 3-SLS is the Cryogenic Triplex Pump
- ACD AC-18 is the Centrifugal Boost Pump (2” x 3” x 6”)
- Vita International Vaporizer (Model VDF-720K-10) rated to 305m3/min (11,000 scfm) at 69 kPa (10,000 psi)
- UBH Cryogenic skid tank, 3,000 USG capacity
- Maximum Pump Rate: 305 m3/min. (11,000 scfm)
- Maximum Operating Pressure: 69 MPa (10,000 psi)
- Normal Discharge Temperature: 21 deg. C. (70 deg. F.)
