Description

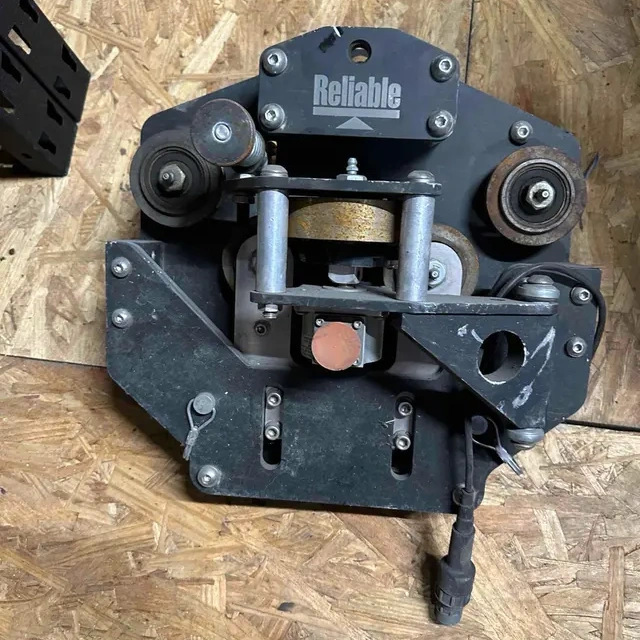

Features – Wireline Measuring Head

• Measures Both Line Tension and Line Payout
• Integrated Load Cell
• Max Line Tension 10,000 lb / 4,536 kg
• Works with Line Sizes from 0.081″ up to 5/16″ dia.
• Grease Fittings on All Bearings
• Available in Top or Bottom Mount
• Hinged Mounting Shaft
• Dual Counter Connections for Digital Encoder and/or Mechanical Counter
• Easy Line Changes – No Tools Required
• Guides Rollers at Front & Back
• Counting Wheels for 1 ft and 1/3 m Circumference are Available
• Compatible with Reliable Scale Corporation Digital Dial series indicator with tension, depth and speed monitoring
• Aluminium & Stainless Frame Optimized for Light Weight and High Strength
• Sturdy Clamping Springs Eliminate Line Slippage at Counting Wheels
