Workover Rig 37 Sold

Description

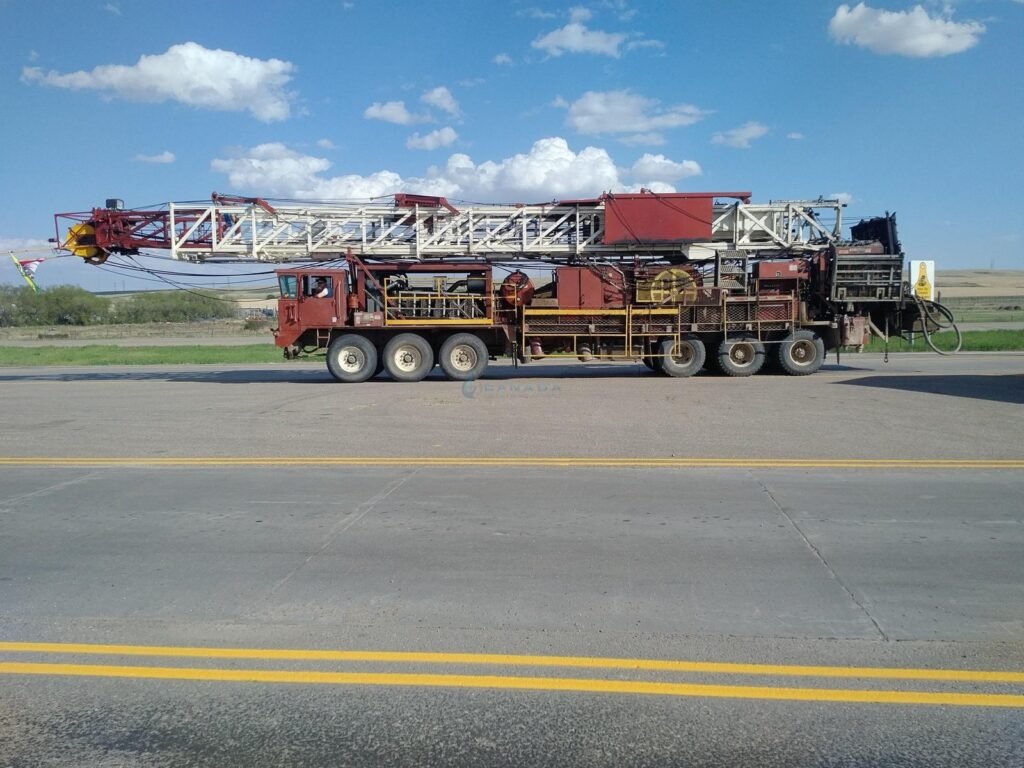

Workover Rig 37  (SOLD)

  • 1981 CC Corsair 400
  • Class II KSM Freestanding Package  Double 32m Derrick 103,000 daN on 6 lines
  • Tri Steer and Tri Drive
  • Double Raising Rams
  • Detroit 60 Series 475 HP Motor with 17562 hours
  • CLT 5860 Allison Transmission
  • 10,436 hours left before the next Level IV
  • 42×10 Main drum
  • Kobelt 40 inch brake assist
  • Serial No.: 29969
  • Rig Tire Size:
    • Axle 1   445-65R x 22.5
    • Axle 2   445-65R x 22.5
    • Axle 3   445-65R x 22.5
    • Axle 4   12R x 22.5
    • Axle 5   12R x 22.5
    • Axle 6   12R x 22.5
  • Distance Between Axle Centers Tridem
    • 1&2   1.31m
    • 2&3   1.31m
    • 3&4   4.97m
    • 4&5   1.39m
    • 5&6   1.39m
  • Dimensions
    • Overall Length Rig & Derrick   19.39m
    • Height of Rig                              4.34m
    • Derrick Overhang                      4.94m
    • Front Axle to Front of Carrier    1.91m
    • Rear Axle to Rear of Carrier      2.50m
    • Overall Length of Carrier         14.55m
    • Overall Width                            3.04m
  • Rig Weights
    • Steering Axles  23650kg   Rear Drivers  25910kg  GVW  49560kg

Additional information

Weight 49560 kg
Dimensions 1939 × 304 × 434 cm

Out of stock
